Environment erosion control

Plastic 3D Geomat

3D geomat also know as erosion control mat, debris flows control mat, Landslide control mat.

3D geomat’s mechanism of action is used both of plant and the three-dimensional reticular structure to construct a protective system with plants own growth ability.

                                                                                                        Plastic 3D Geomat manufacturer--HEBEI VIVA NET CO LTD

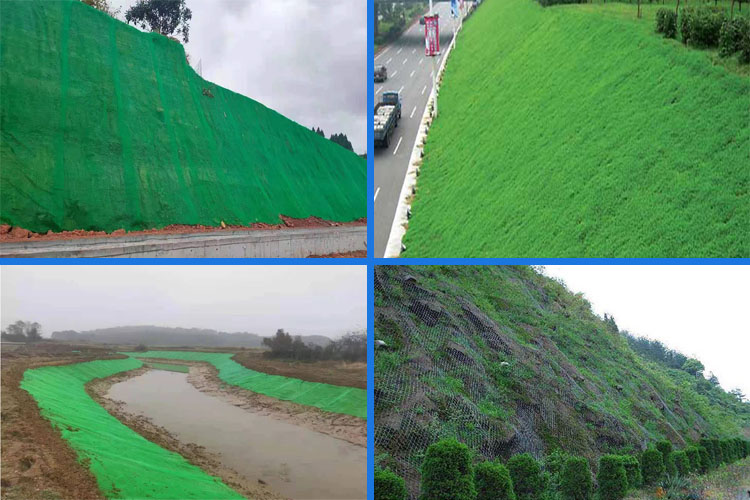

Plastic 3D Geomat, also known as erosion control mat, debris‑flow & landslide control mat, features a three‑dimensional reticular structure with over 90% void space for soil filling and root penetration. Before turf establishment, it effectively holds topsoil and grass seeds against wind‑rain washout. It preserves ground temperature to extend plant growing period. After vegetation grows up, the geomat combines with plants to build a composite anti‑erosion protective layer, resisting high‑level and high‑velocity water flow. It can replace concrete, asphalt and stone materials for slope stabilization of highways, railways, river banks and dams. The soil retention rate can reach 97.5% on 45‑degree slopes.

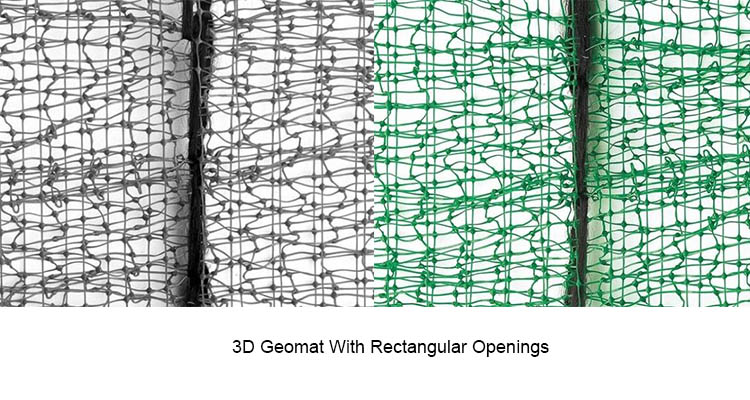

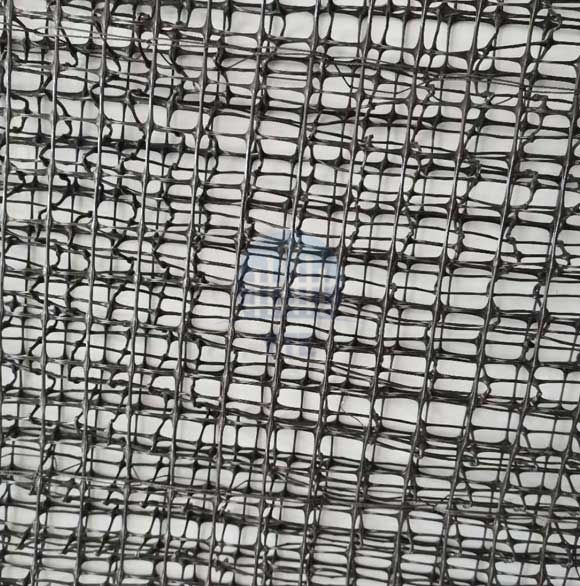

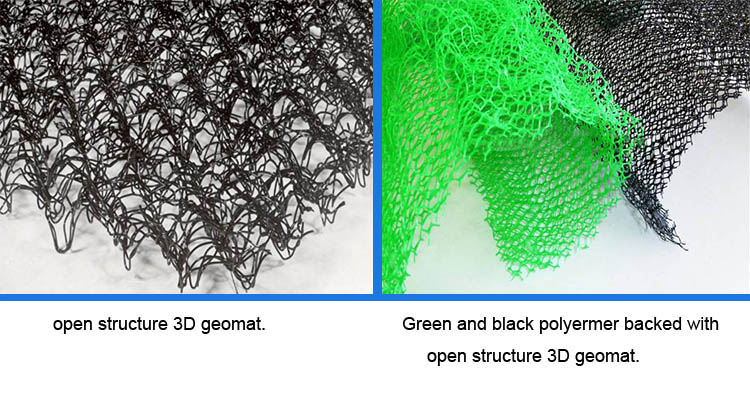

Plastic 3D Geomat       Plastic 3D Geomat

Plastic 3D Geomat  Plastic 3D Geomat Plastic 3D Geomat


ItemEM2(YTE‑VC‑01)EM3(YTE‑VC‑02)EM4(YTE‑VC‑03)EM5(YTE‑VC‑04)
Weight (g/m²)220260350430
Thickness (mm)10121416
Longitudinal Tensile Strength (kN/m)0.81.42.03.2
Transverse Tensile Strength (kN/m)0.81.42.03.2
MaterialUV stabilized HDPE
Void ratio>90%
Standard Width2m, customizable
Roll Length30m / 50m, customizable
ColorGreen, Black


Features Of 3D Geomat:

  • Fix grass seeds and prevent soil loss before grass germination

  • Large void space for soil filling and plant root penetration

  • Heat‑absorbing structure to keep ground temperature

  • Form composite protection system together with vegetation

  • Eco‑friendly substitute for concrete and stone slope works




Products NO.Weight Per Unit Area≥(g / m2)Weight Per Unit Area≥(g / m2)Longitudinal Tensile Strength≥(kn /m)Transverse Tensile Strength ≥(kn /m)
VIVA-VC-0122010350430
VIVA-VC-02260121416
VIVA-VC-033501423.2
VIVA-VC-044301623.2


  • Q: Can I have a sample and how long it will need?

    A: Yes, we would like to send the sample for your checking.As company rules,pls afford the freight.thanks

  • Q: How many could I purchase at least?

    A: We are the plastic netting factory,not retail or trading company,so we don't have stocks,the mini order will be 2tons.Thanks

  • Q: What about the leading time?

    A: About 25-30 working days, it depends on your quantities.

  • Q: How about the shipping method?

    A: By Air, By Sea, by express

  • Q: What’s the payment method you support?

    A: T/T, L/C, Western Union, Money Gram.
