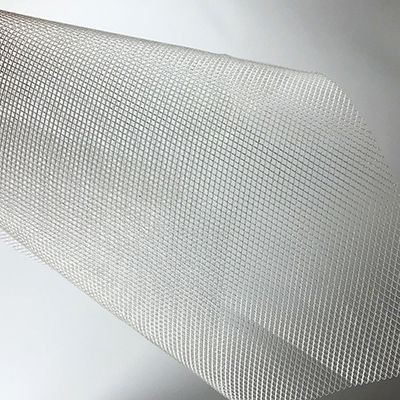

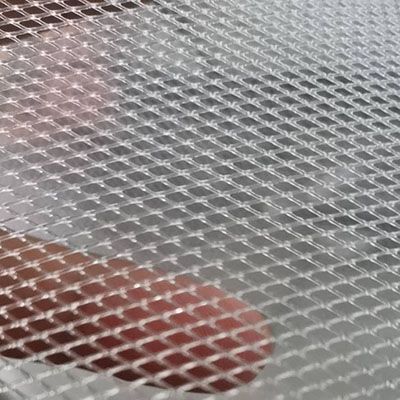

Feed Channel Spacer

Feed channel spacer is an important component of the RO membrane. It also knows as RO’s inner net, flow channel spacer, and feed spacer. It seems simple but plays an important role, it can influence pressures, overall energy consumption, and degrees of membrane fouling. The manufacture of polypropylene net can be traced back to the middle of the last century.

Inquire Now Next Product

PRODUCTS DESCRIPTION TECHNICAL DATA QUESTIONS

Feed Channel Spacer for RO Membrane manufacturer--HEBEI VIVA NET CO.,LTD

Feed channel spacer, also known as RO feed spacer, is the core inner net for spiral-wound reverse osmosis membrane elements. Made of extruded PP, it separates membrane sheets and builds uniform feed flow channels. It creates mild turbulence to reduce concentration polarization, lower pressure drop and mitigate membrane fouling. The popular 34-mil version features wider channels for energy saving and easier cleaning. Widely used in water treatment, desalination and industrial RO element manufacturing.

Main: feed channel spacer for RO membrane, RO feed spacer

Extended: spiral wound RO membrane spacer, pp feed channel spacer, RO flow channel spacer, RO inner mesh spacer

Long-tail: 34 mil feed channel spacer, low fouling RO feed spacer for water desalination

Feed Channel Spacer

Specifications of Feed Channel Spacer for RO Membrane
Material	Polypropylene (PP)
Thickness	14–36 mil, tolerance ±2 mil
Mesh Shape	Diamond / Square
Standard Width	30–48 inch, customizable
Roll Length	500 inch, customizable
Common Grades	20 / 22 / 28 / 30 / 34‑mil (34‑mil best‑seller)

Features:

1)Stable structure, good tensile strength

2)One-side smooth surface, no scratch to membrane

3)Low pressure drop, anti-fouling, easy for CIP cleaning

4)Acid & alkali resistant, compatible with RO cleaning chemicals

5)Custom mesh & thickness for different RO element designs

Specifications of Feed Channel Spacer for RO Membrane

Item No.	Material	Thickness(mil)	Tolerance(mil)	Meshshape	Mesh size	Strand Per Inch	Width (inch)	Length (inch)
VIVA01	PP	20	±2	Diamond	0.011x 0.011	43	30-48	500
VIVA02		22	±2	Diamond	0.015x 0.015	37
VIVA03		22	±2	Diamond	0.015x 0.015	37
VIVA04		30	±2	Diamond	0.018x 0.018	30
VIVA05		34	±2	Diamond	0.016x 0.016	28
VIVA06		14	±2	Square	0.021x 0.027	25
VIVA07		14	±2	Square	0.025x 0.030	27.6x25
VIVA08		19	±2	Square	0.040x 0.053	17x14.6
VIVA09		19	±2	Square	0.054x 0.080	15x11
VIVA010		21	±2	Square	0.040x 0.053	16
VIVA011		36	±2	Square	0.030x 0.037	16x13

Q: Can I have a sample and how long it will need?

A: Yes, we would like to send the sample for your checking.As company rules,pls afford the freight.thanks
Q: How many could I purchase at least?

A: We are the plastic netting factory,not retail or trading company,so we don't have stocks,the mini order will be 2tons.Thanks
Q: What about the leading time?

A: About 25-30 working days, it depends on your quantities.
Q: How about the shipping method?

A: By Air, By Sea, by express
Q: What’s the payment method you support?

A: T/T, L/C, Western Union, Money Gram.
